Tungsten Carbide Sleeves for ESP （Electric Submersible Pump) Pumps

|

Tungsten Carbide Sleeves for ESP （Electric Submersible Pump)

Pumps

Tungsten carbide is mainly used in various pumps to treat fluids containing solid particles, high-pressure or highly corrosive media, such as petroleum, mining, and construction etc industry . In these pumps, tungsten carbide are typically used to manufacture the most critical and wear-resistant core components, greatly improving their service life and reliability.

In Electric Submersible Pump ESP , tungsten carbide is mainly used for bearings and guide wheels etc wear parts to protect the impeller of the electric submersible pump and resist the wear and tear of the centrifugal pump caused by high sand content oil wells

|

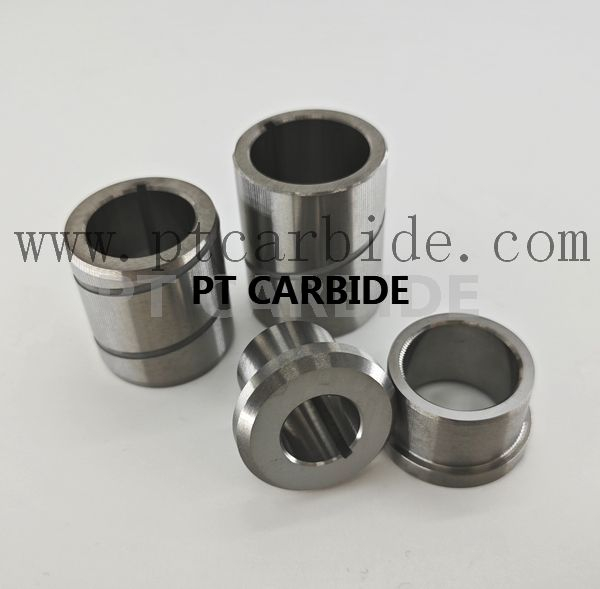

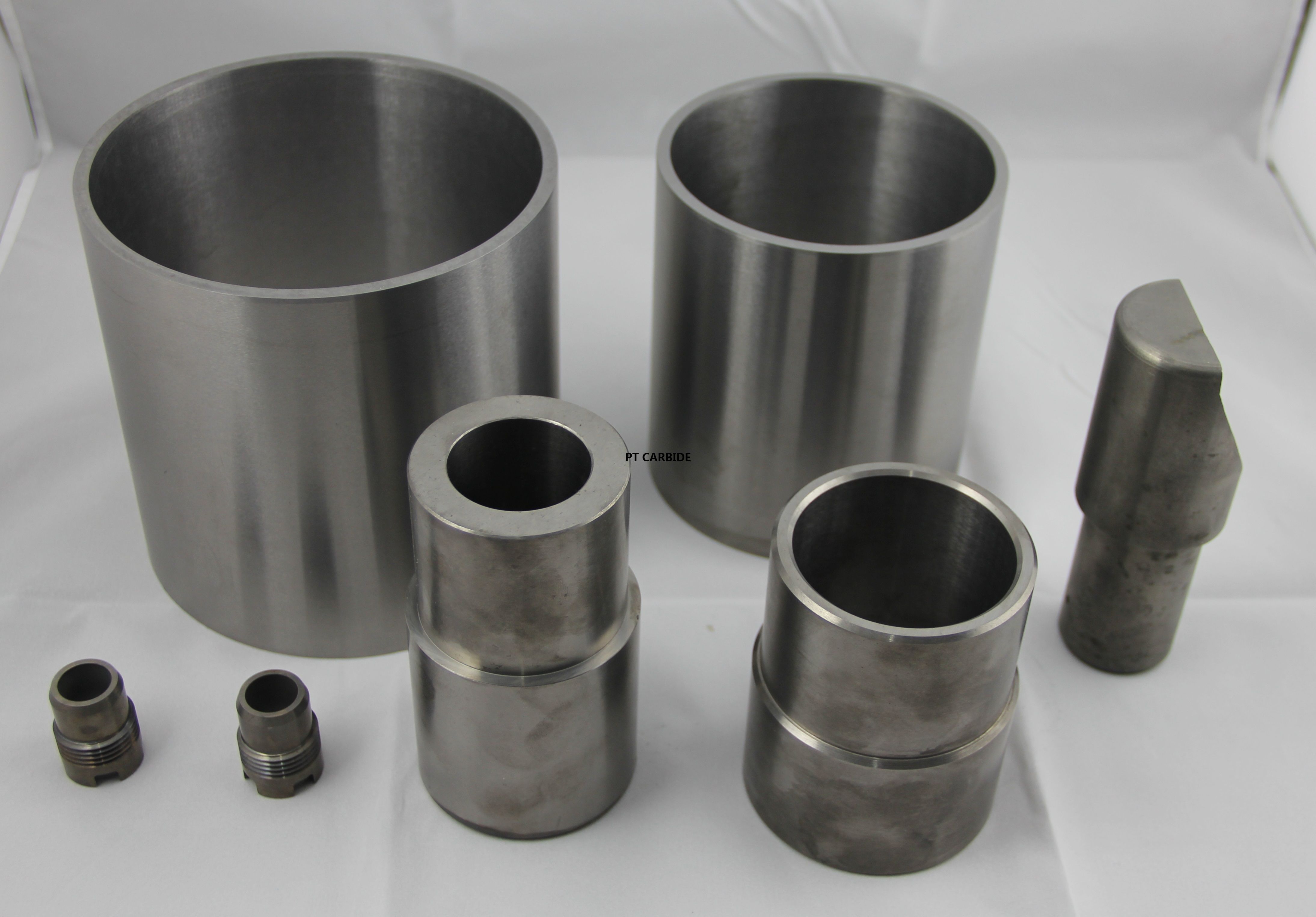

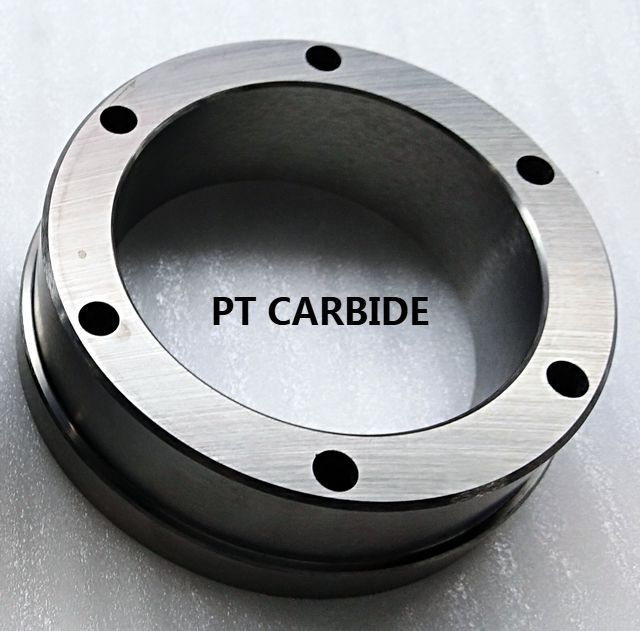

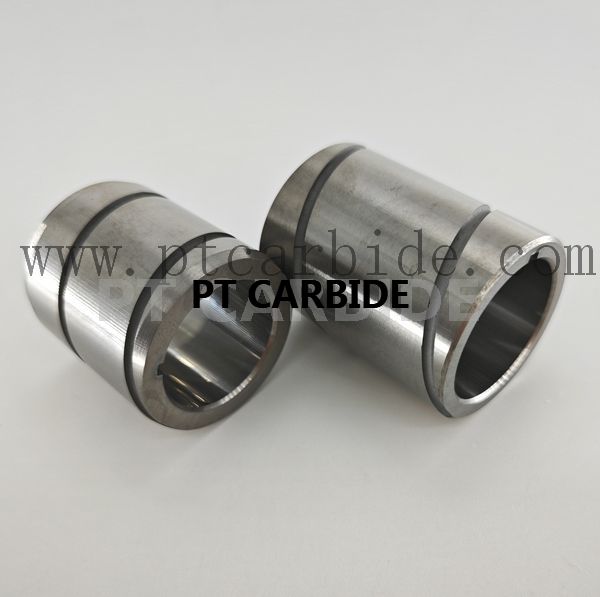

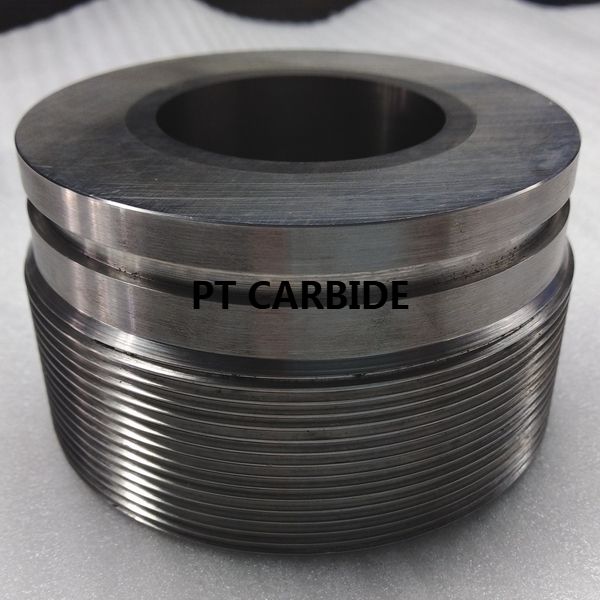

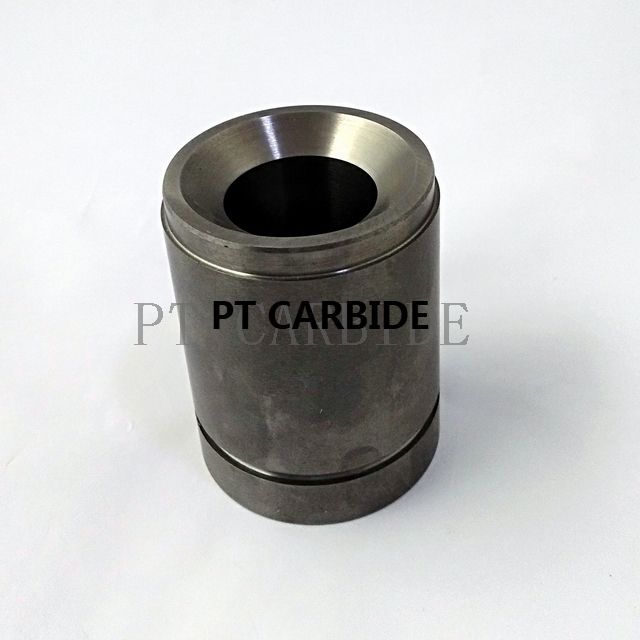

 Product Picture

|

 Application

• Water injection pump (oil field)

• Piston pump /plunger pump

• Submersible electric pump (oil field production)

• Mortar/slurry pump (mining, construction)

• Multi stage centrifugal pump (mining, beneficiation)

1. Medium characteristics: When the pumped medium contains solid particles (such as sediment, mineral powder, coal slag), corrosive substances (such as acidic mine water, seawater), or high viscosity fluids.

2. Operating conditions: When the pump is under high pressure, high-frequency impact, high temperature, or requires high reliability and long maintenance free cycles.

|

 Company Profile

Sichuan Precision Carbide Tech Co., Ltd (SPCT)is located at the north of the famous Sanxingdui Site, 38km from Chengdu. SPCT is a high-tech enterprise that integrates research and development, production, sales, and service of hard alloys. We provide high-quality products and services for industries such as oil and gas, pump valves, geological mineral, construction, coal, chemical, light textile, nuclear power, and national defense and military industry. At present, the main products include tungsten carbide sealing rings for mechanical seals, shaft sleeves for pumps, tungsten carbide products for petroleum machinery, tungsten carbide rods, plates, mining tools, tungsten carbide cold heading molds (tungsten carbide dies ), tungsten carbide non-magnetic products for jewelry, etc. We currently have more than 180 employees and an annual production of 500 tons of tungsten carbide. The sales revenue in 2022 is 121 million yuan, and the sales revenue in 2023 is 125 million yuan.

We have strong R&D capabilities and fast adaptability to market demand. We have established a comprehensive R&D team and strong material R&D capabilities, especially in the application of materials for domestic nuclear power projects, which has been highly recognized. We achieved12 utility model patents. At present, 40% of the products are exported to overseas market, such as North America, Europe, and Southeast Asia. We obtained the quality management system certificate ISO 9001:2015 and environmental management system certificate ISO 14001:2015,and certificate FDA .

|

 Production Process

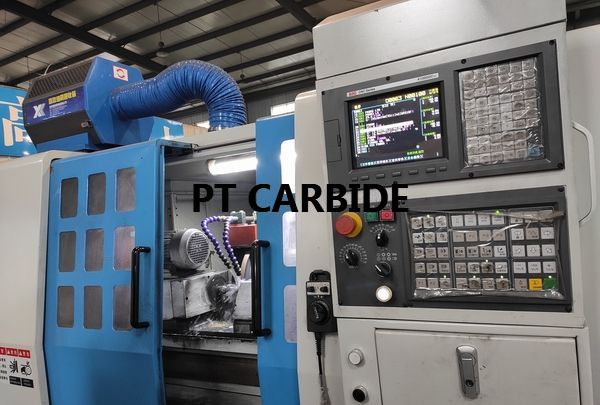

Powder making in ball wet mill                   CNC Machine

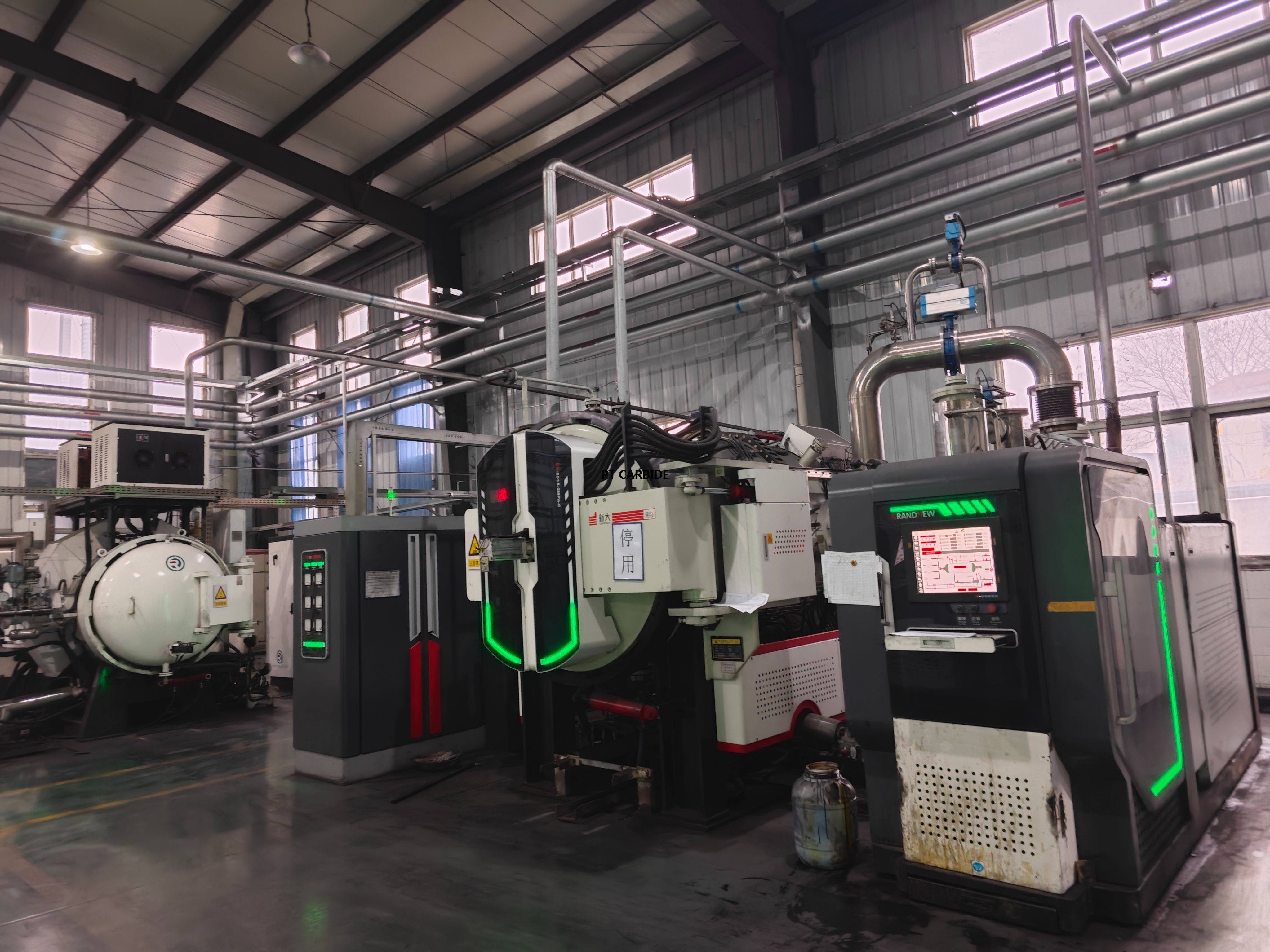

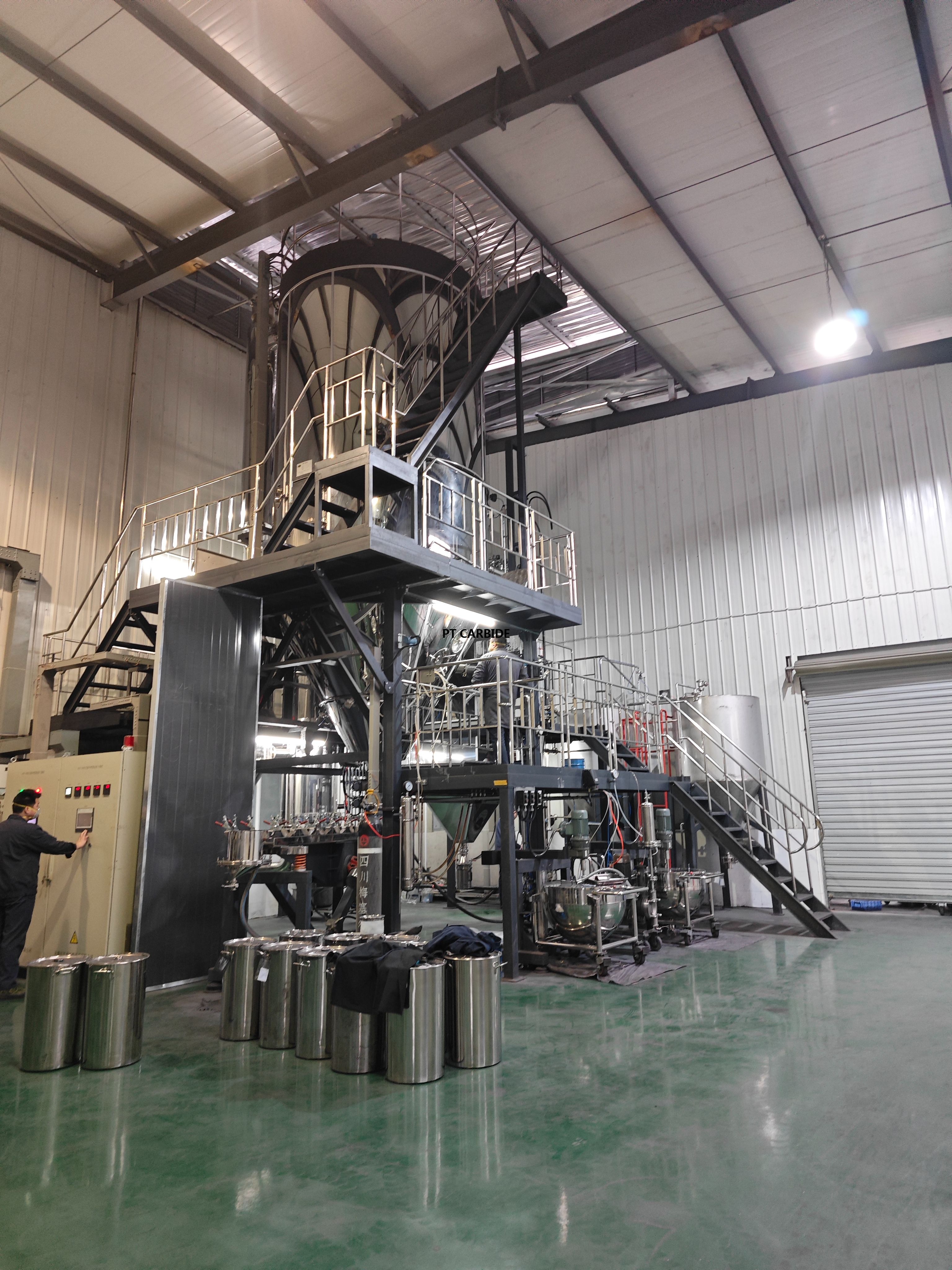

                                              Powder making in closed drying tower      2Mpa /6Mpa/10Mpa pressure furnace for high quality sintering

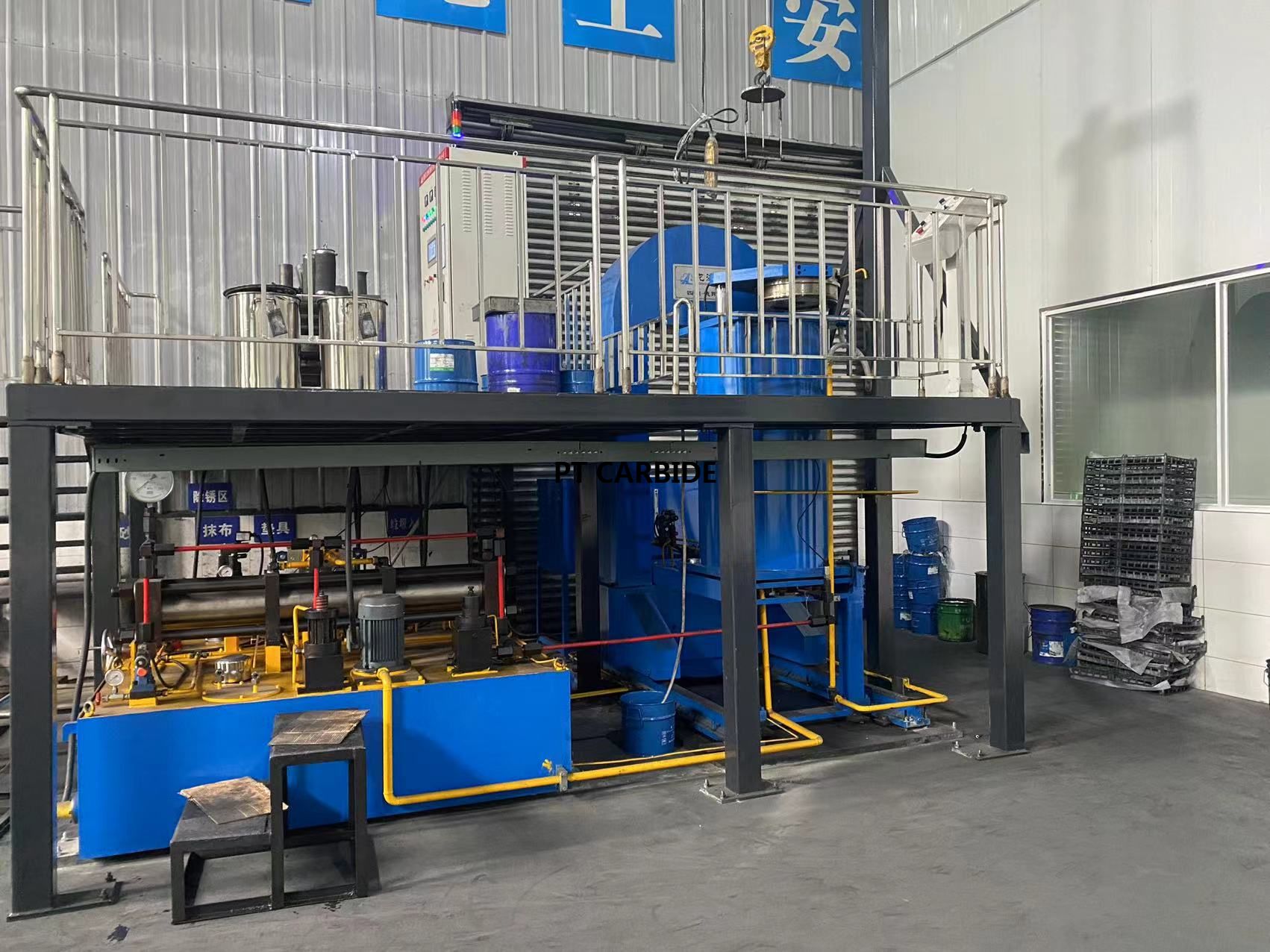

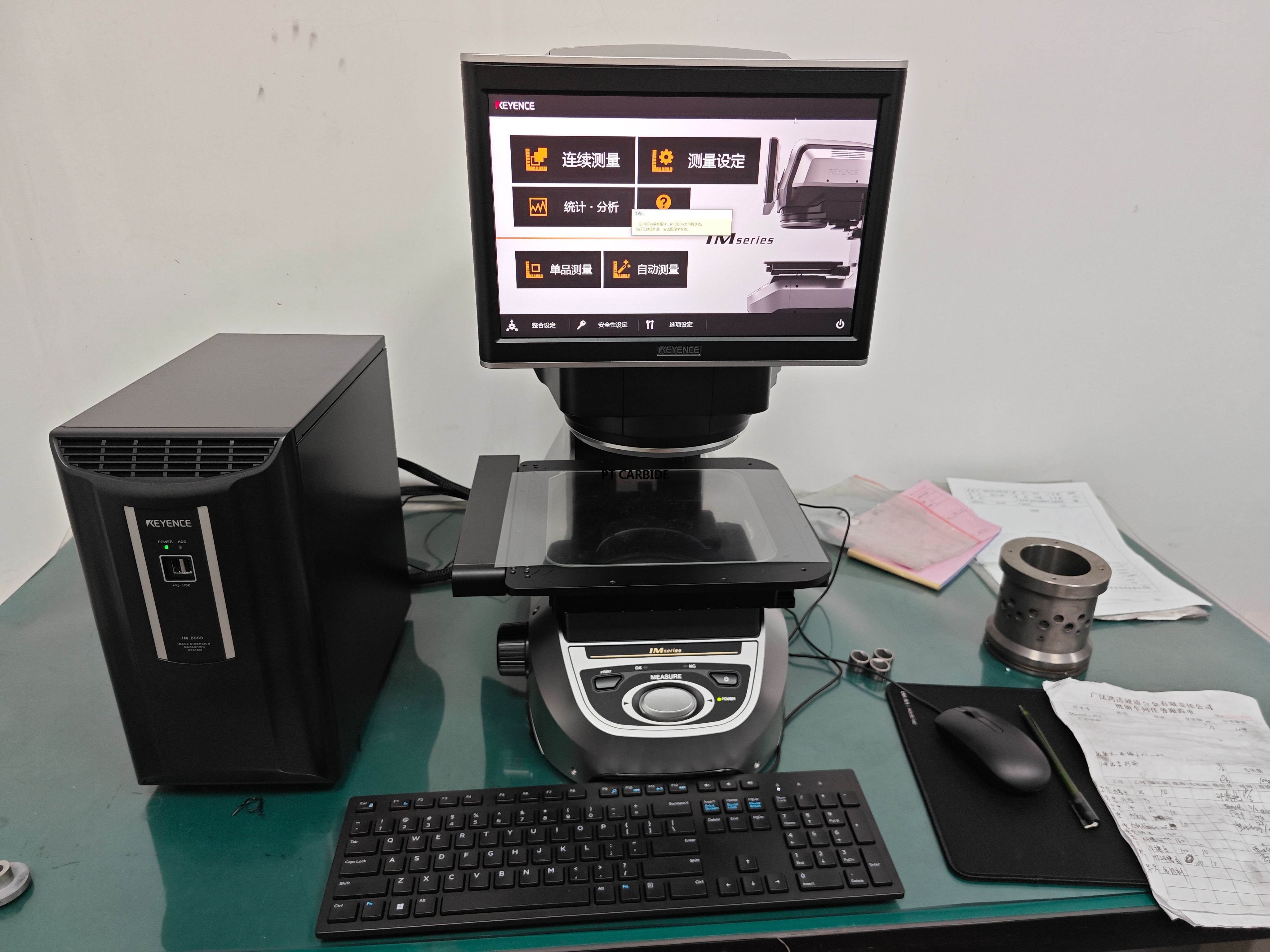

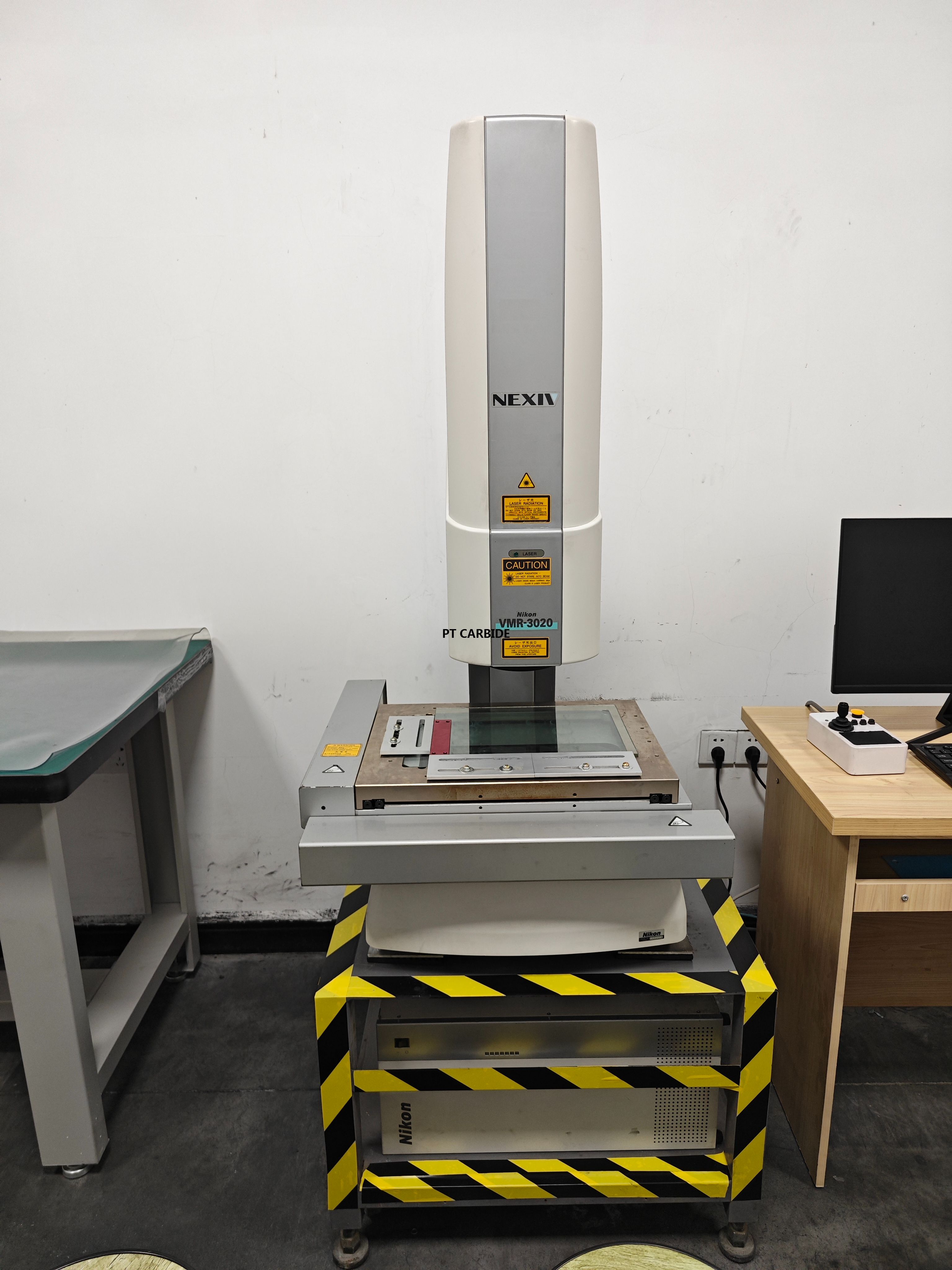

Big size cold Isostatic pressure                                    Automatic image inspection system

|

 Certifications

ISO15001:2018

ISO14001:2015

ISO14001:2015

|
